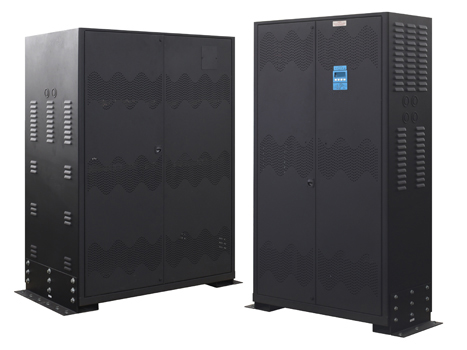

OSHPD CERTIFIED Three Phase Emergency Lighting Inverter
LEADER IN LED! Title 24 inspired, Online or Fast Transfer
LEADER IN LED! Title 24 inspired, Online or Fast Transfer
LED, HID, Incandescent, Fluorescent
Installed in Office Buildings, Factories, Hospitals, Schools, Shopping Centers, Casinos, Airports, Train and Bus Terminals
FEATURES |
OSHPD Certification OSP-0499-10 (CA Office of Statewide Health Planning and Development) |
CSA Listed to UL924, UL924A, & UL1778 |
LED, Incandescent, Fluorescent, HID, HPS |
Power Factor & Energy Efficient Ballast |
98% Efficiency Fast Transfer (typ.); 94% Efficiency Online (typ.) |
Pulse width modulated (PWM) |
Generator compatible with Auto Governor |
Back-lit LCD Display for Continuous Self Diagnostics |
Modular Assembly for Ease of Installation |
Battery exerciser |
Double Conversion Technology or Fast Transfer |
Remote Monitoring |
Provision for RS 232 & RS 485 ports for metering, measuring and diagnostic |
90 minutes runtime @ 100% load |
Optional g-Battery, 20 years warranty |
Global Monitoring System Option |
Wireless Battery Monitoring System Option |
2 year Factory Warranty |
SPECIFICATIONS |
|
| Power Rating | 8, 12, 16, 20, 24, 32, 40, and 50kW |
| Input Voltage | 208Y/120 or 480Y/277 VAC (-20% to +15%) |
| Output Voltage | 208Y/120 or 480Y/277 VAC |
| Output Frequency | Inverter Operation: : 60Hz ±0.5Hz |
| Output Voltage Reg. | ±3% Regulated within CBEMA curve |
| Output Wave Form | Sine-wave <5% THD |
| Efficiency | 98% typ. Fast Transfer, 92% typ. Online |
| Crest Factor | 3.1 Typical |
| Surge Protection | The inverter will protect itself and the load against surge as defined in ANSI/IEEE C62.41 category A and B. |
| Isolation | Complete from line. Output neutral bonded to ground |
| Noise Isolation | -120 dB. Common-Mode. 60 dB. Transverse-Mode |
| Battery | 10 Year pro rated maintenance free(AGM)Battery |
| Recharge Current | Conforms to UL Standard |
| External Battery | Provisions for hardware connection of optional external battery cabinets or DC source. |
| Environmental | Humidity: 0-95% RH w/no condensation Operating Temperature: UPS: 0°C to 40°C. (32°F to 104°F) Battery: 20°C to 30°C. (68°F to 86°F) Storage temperature: -20°C to 60°C. (-40°F to 140°F) |
| Safety Agencies | CUL, CSA Listed UL1778, UL924, NFPA, NEC, OSHA. |
| Document Type | PDF format | Word Format |
|---|---|---|
| Datasheet | Datasheet | |
| Design Guide Spec | Design Guide Spec | |
| Manual | Manual | |
| Tech Drawings | Tech Drawings | |
| OSHPD Certificate | OSHPD Certificate | |
| Shaker Table Test (GIF) | Shaker Table Test (GIF) | |
| Options | Options | Options |
| Cabinet Type | KVA / Size | Mounting | File Type |
|---|---|---|---|
| Inverter Cabinet (63"H) | C Size | OSHPD (HCAI) | STP |
| Battery Cabinet | C Size | OSHPD (HCAI) | STP |
| Battery Cabinet | D Size | OSHPD (HCAI) | STP |
